Highsider Rocket Bullet Indicator 3IN1
Manufacturer ID: 254-347
Add your vehicle to ensure you get the right parts
Customer reviews (0)
0 out of 5
Based on 0 reviews
Description

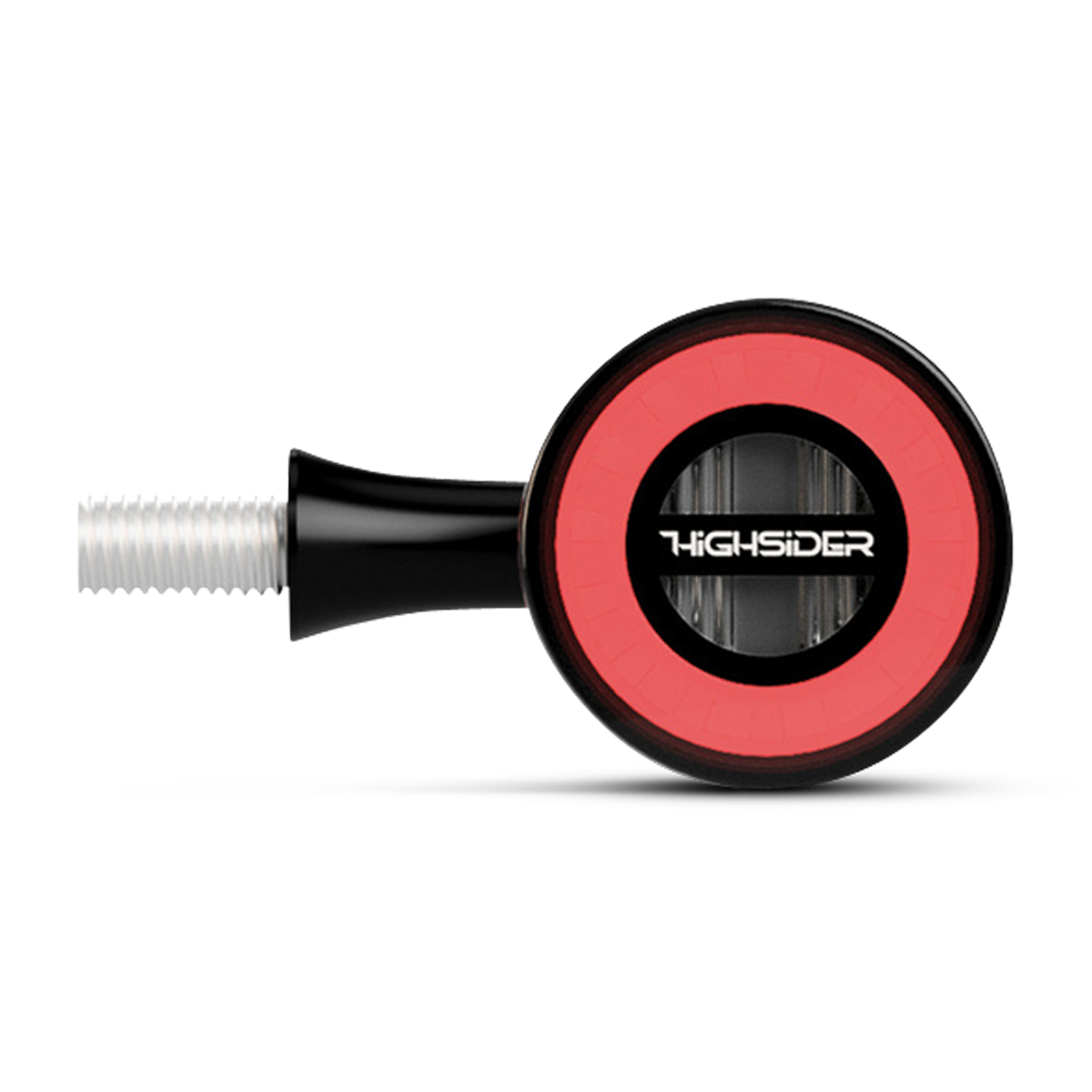

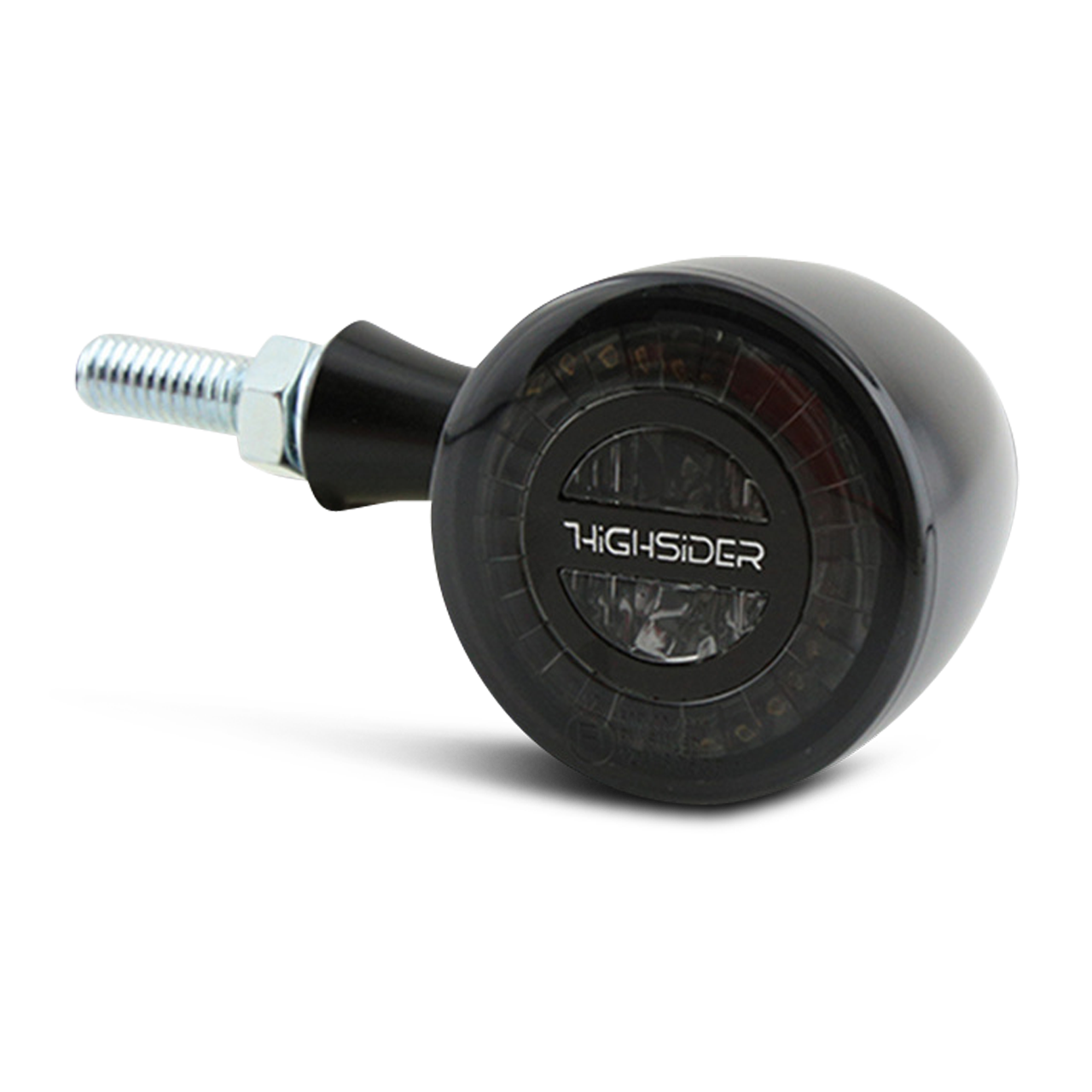

HIGHSIDER Rocket Bullet 3in1 LED rear light, brake light, turn signal, aluminium housing, tinted glass, pair, E-approved for rear.
In the center are 6 very bright SMD LEDs installed. The outer ring consists of COBs (Chip On Board). Thanks to the new LED chip embedding for high-power LEDs, a very high luminance can be achieved with currently the best possible efficiency and service life. This also allows higher light values to be achieved than with conventional LEDs.
Dimensions:
A Diameter: 45 mm
B Width: 65 mm
C Depth: 64 mm
Stem length: 24 mm
Fixing bolt: M10 x 1.5 mm x length 30 mm
Connections:
Black wire = ground (-)
Yellow wire = tail light (+)
Red wire = brake light (+)
Blue = turn signal (+)
Scope of delivery:1 pair
In the center are 6 very bright SMD LEDs installed. The outer ring consists of COBs (Chip On Board). Thanks to the new LED chip embedding for high-power LEDs, a very high luminance can be achieved with currently the best possible efficiency and service life. This also allows higher light values to be achieved than with conventional LEDs.
Dimensions:
A Diameter: 45 mm
B Width: 65 mm
C Depth: 64 mm
Stem length: 24 mm
Fixing bolt: M10 x 1.5 mm x length 30 mm
Connections:
Black wire = ground (-)
Yellow wire = tail light (+)
Red wire = brake light (+)
Blue = turn signal (+)
Scope of delivery:1 pair
Specifications
- Weight Packaging 271
- Length Packaging 189
- Manufacturers article number 254-347
- Sku Title Chrome
- Height Packaging 96
- Placement Front, Rear
- Width Packaging 132
