Highsider Headlight Insert Typ 4

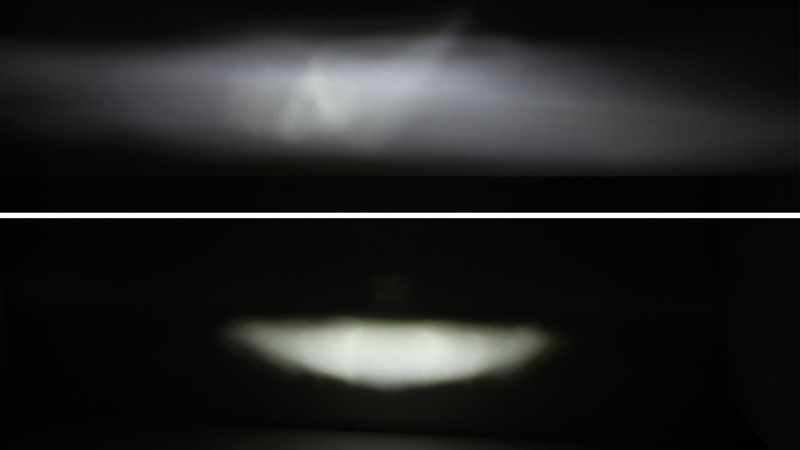

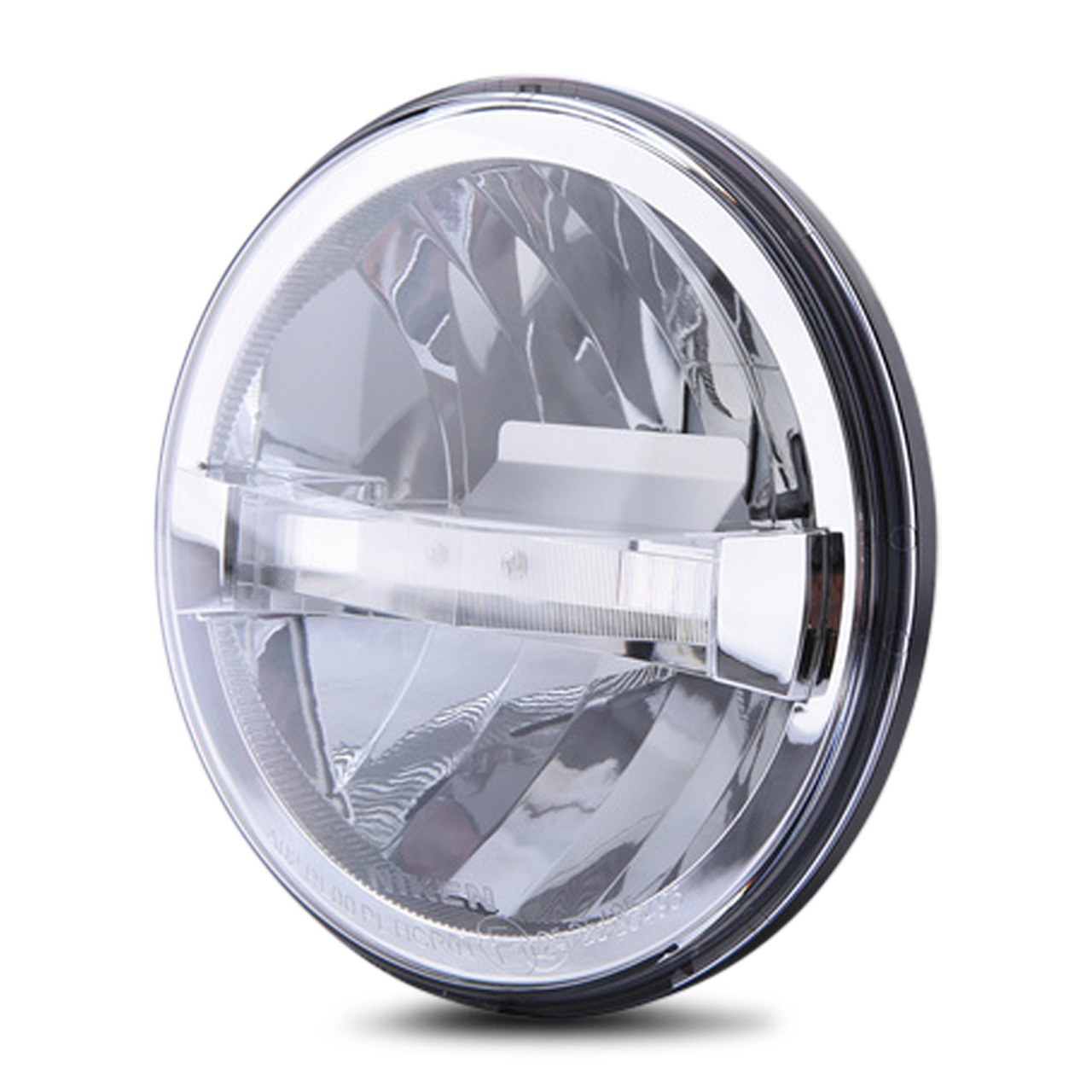

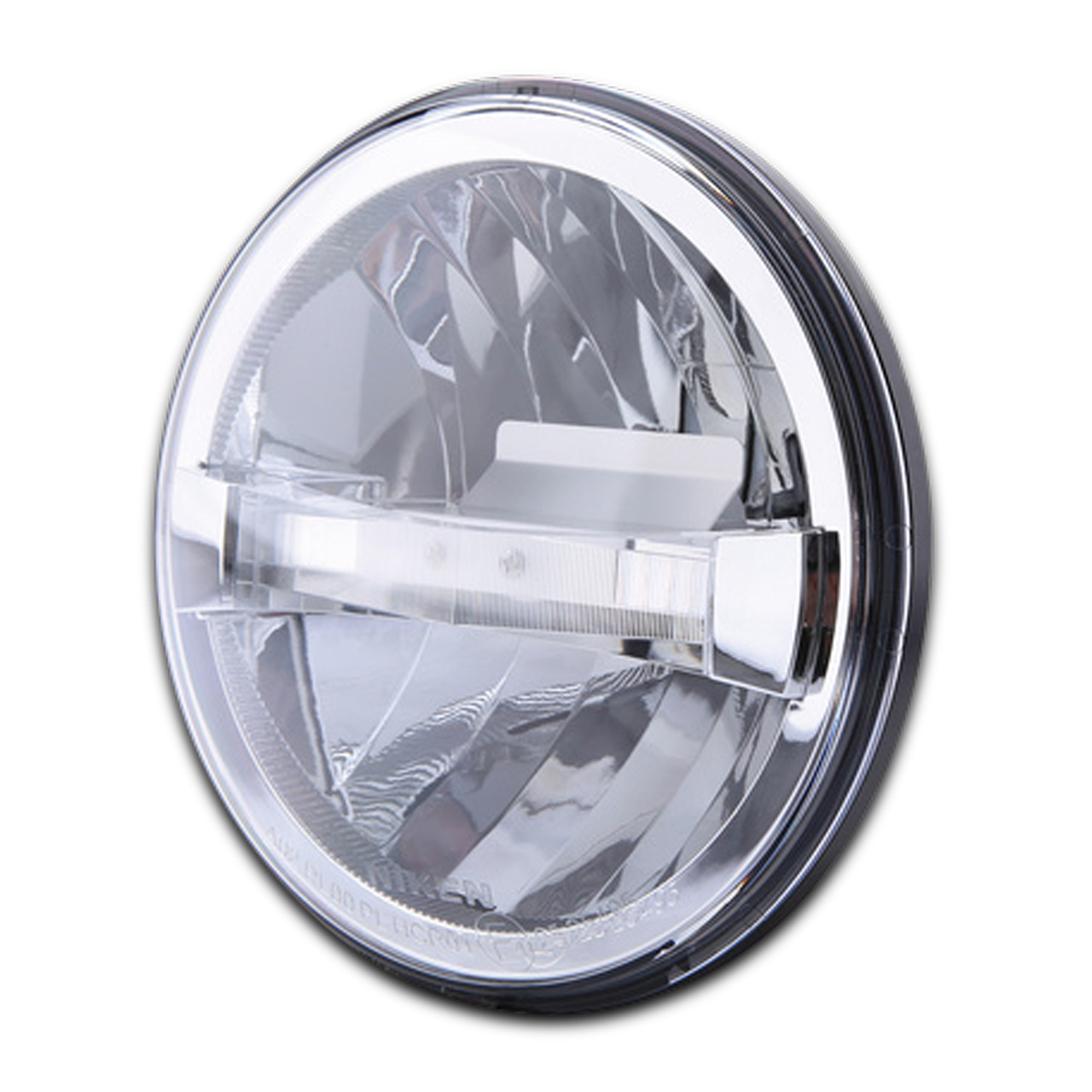

This round, chrome-plated reflector with clear glass has a high beam, low beam, parking and daytime running light function. The daytime running light and position light are mounted in a central strip so that a very beautiful optical image is created – the dipped beam lights up above the strip, the main beam light correspondingly below. The reflector emits an asymmetrical luminous flux – only approved for right-hand traffic.

Diameter A = 177 mm
Diameter GA = 168 mm
Diameter I = 160 mm T = 61 mm R = 10 mm

Connections: Black cable = ground (-)Blue cable = low beam (+), power consumption at 12V: 1.8A, 22WYellow cable = high beam (+), power consumption at12V: 1.3A, 13WBlack cable = ground (-)TFL: Black cable = ground (-)Red cable = daytime running light (+), power consumption at 12V: 1.2A, 14WWhite cable = position light (+), power consumption at 12V: 0,2A, 2,4W

Optionally available:
Complete HIGHSIDER spotlights with this reflector– 7-inch LED spotlight RENO TYPE 4, chrome, Art.-No.:1108708001– 7-inch headlight HD-STYLE, chrome, item no.: 1108704001– 7-inch headlight BRITISH-STYLE, chrome, item no.: 1108704001– 7-inch headlight BRITISH-STYLE, chrome, item no.

No.: 1108703001

Note 1:
Use asymmetrical, approved for right-hand traffic only. The enclosed 3-pole standard plug must be installed by the customer after installing the reflector.

View of plug contacts:
Driving light (yellow) = right Dipped beam (blue) = top Ground (black) = left

Note 2:
Daytime running lights can also be used on vehicles without light switches. The following components are required for this:

Highsider DRL CONTROL- BOX CB1: Art. No. 1107969 (switches between low beam and daytime running light)
